Nor1545 ljudmätstation

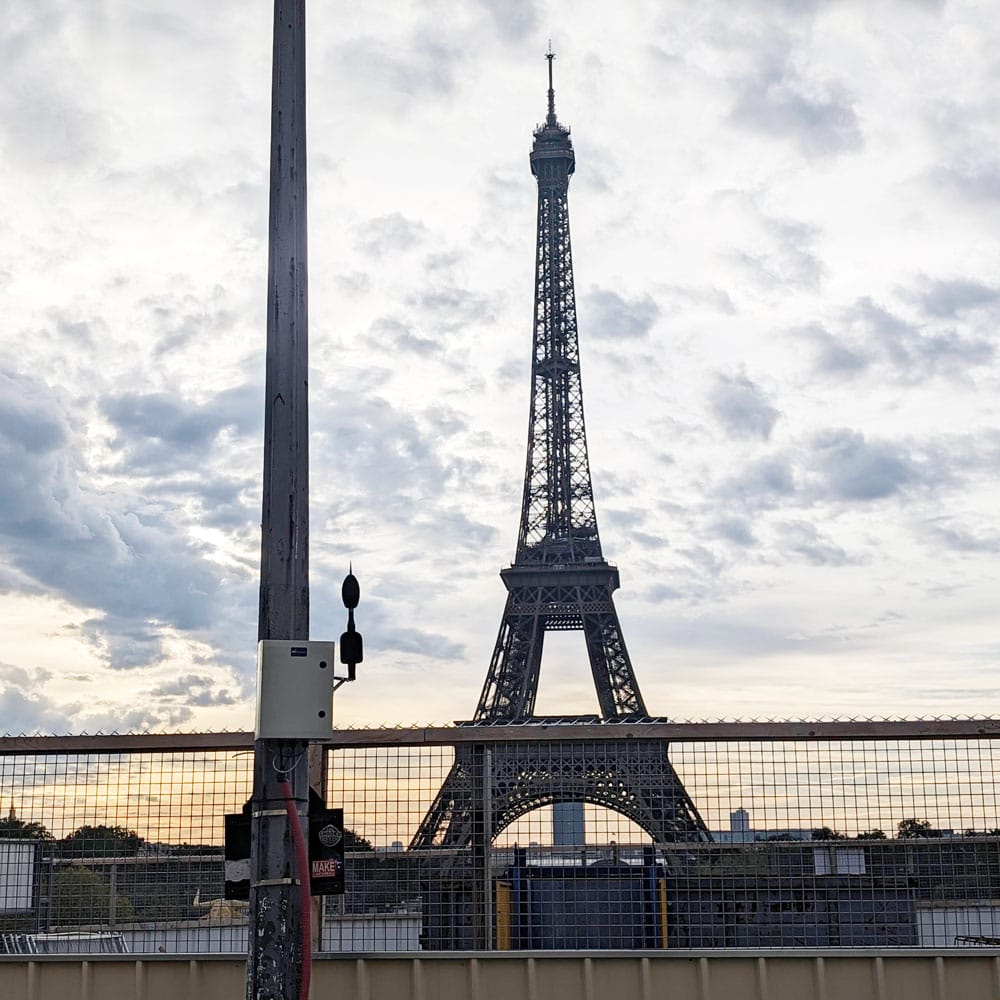

Nor1545 Ljudmätstation Paris

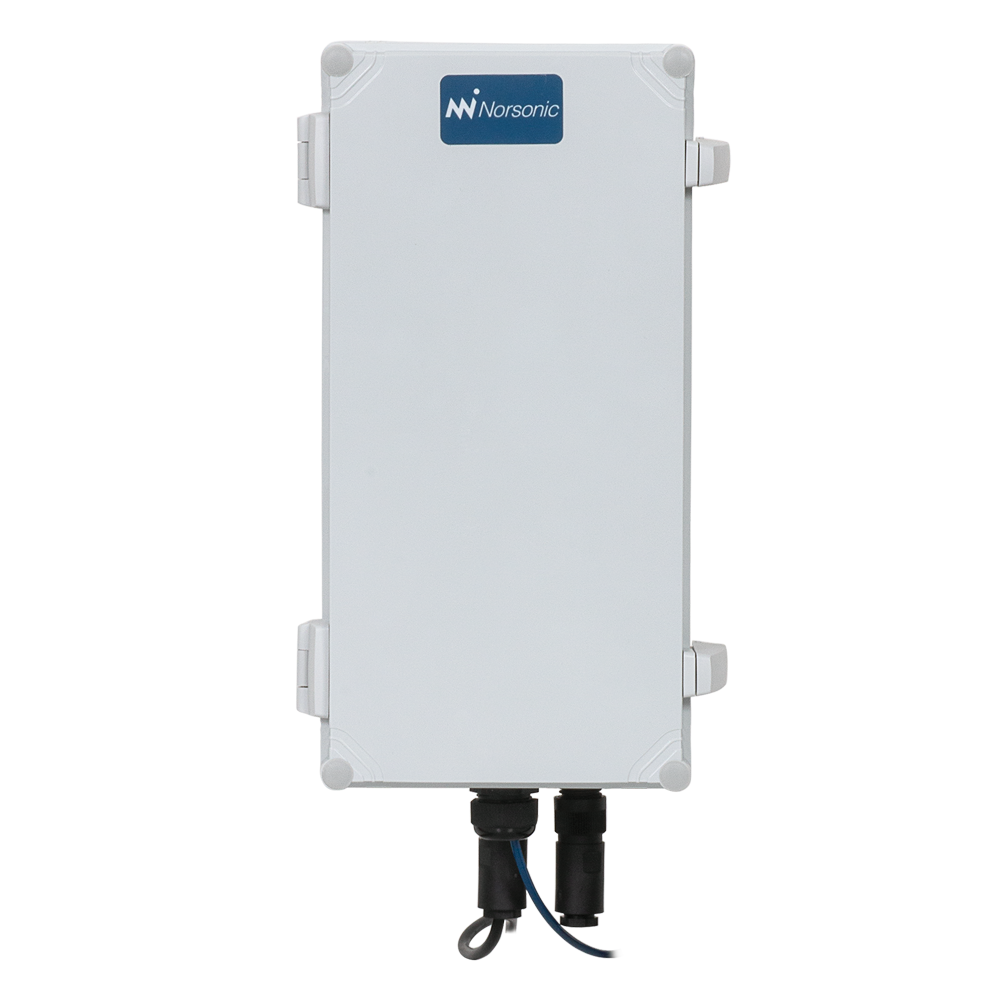

Nor1545_B

Nor1545_B_ ljudmätstation

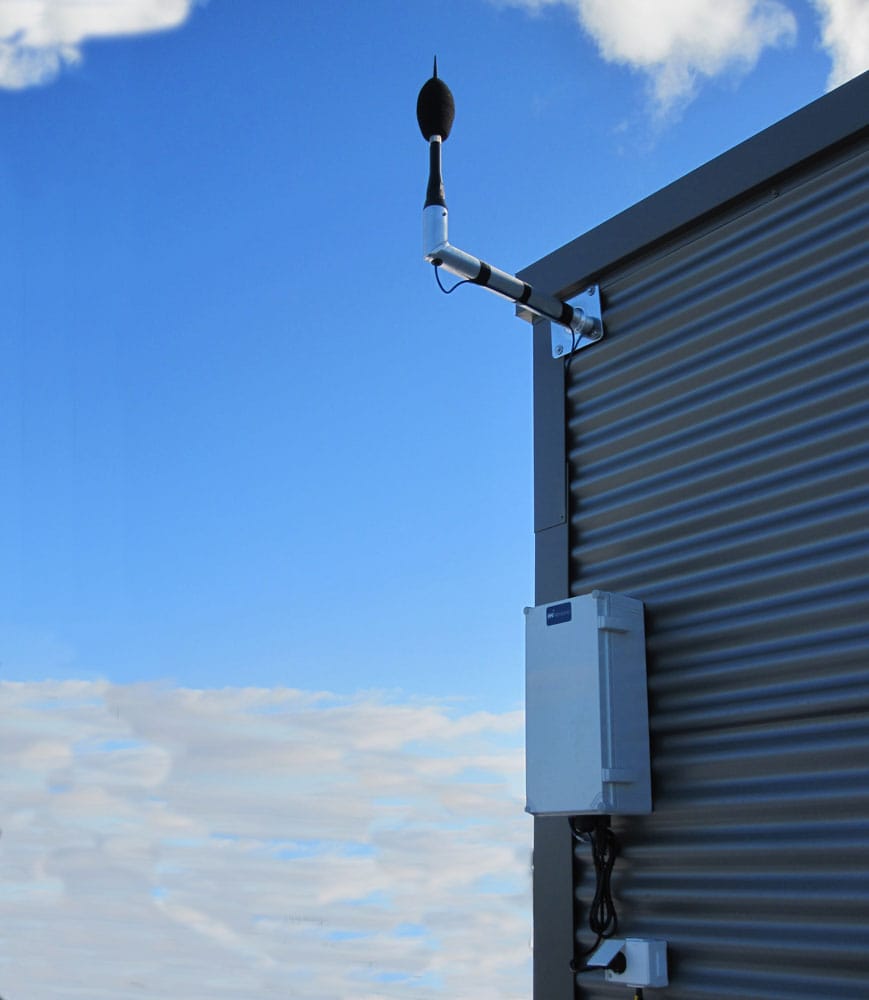

Nor1216

Category: Övervakning av utomhusbuller

Nor1545 Ljudmätstation

Be om info/pris

Nor1545 ljudmätstation är en robust, kostnadseffektiv lösning för utomhus bullerövervakning. Den är baserad på en standard Nor145 klass1 ljudnivåmätare i kombination med en mängd olika hårdvarualternativ för att anpassa systemet för olika behov och applikationer. Systemet erbjuder enkel anslutning till NorCloud, men kan också användas som en fristående, off-line ljudmätstation. I off-line mode lagras ljuddata på ett stort minneskort, även events som ljudinspelningar och bilder kan sparas ner.

Användningsområden

Mätning av buller utomhus
Industrier
Flygplatser
Motorbanor

Toppegenskaper

Support för Noise Compass.
Support till Theies Clima US weather station.
Kan monteras direkt på väggen.

Nor1545

text

The Nor1545 noise monitoring terminal is a robust, efficient solution for your outdoor noise monitoring. Equipped with the state-of-the-art sound level meter Nor145 hosting latest generation communication technology, noise data can be reliably and securely transferred to your office.

The system can be a stand-alone Noise Monitoring terminal or managed and supervised by NorCloud.

NorCloud features automatic reporting, project management of your data and advanced trigger functions (above, below, combined etc). The Noise Compass can be added to automatically set markers and send alarms from predefined sectors, also in 3D.

With NorReview you may perform further in depth analyse of your noise data combined with the Noise Compass and weather data.

Funktioner

text

See and manage your noise data online using NorCloud.
Listen to recorded events.
Automatic reporting.
Support for the Norsonic Noise Compass that locates the noise source.
Support for weather data.
Support for IP camera.
Wired (LAN) or wireless (WIFI/UMTS/LTE/3G/4G).
Built in GPS.
Get notified by email or SMS when set thresholds are reached.
Event trigger recording audio and/or taking a picture
Five simultaneous triggers are supported
System alarms are generated with mains failure, battery low etc. Notification sent via e-mail.
Support for external antennas with full diversity in places with bad signal strength.
Interrupt free switching between mains, external 12V, Solar panel and internal 12V battery.

Specifikationer

text

Cabinet construction / material: High pressure molded fiberglass-reinforced
Weight Nor1545 (including Nor145): 3,3 Kg
Nor1545/B (including internal battery and Nor145): 5,1 kg
Option 2, set of mast mounting brackets: 650 g
Option 3, set of table top feet: 950 g
Size (WxDxH): 200x132x400 mm
Enclosure class: IP66 (IP 67 with extra sealant added in the cable gland)
Flammability rating (enclosure): UL746C 5 inch flame test.
Operational temperature: –20 to 50 °C
Recommended storage temperature: 10 to 30 °C
Temperature range for battery charge: 0 to 40 °C
Wall mounting: 4x M5 or M6 screws in a 180 x 380 mm pattern

Electrical:
Mains: 88 to 264 Vac (47-63Hz) / 125 – 373 VDC
12V input: 9-28Vdc
Support for Solar panel
Power consumption (typical): 3,5W

Nor1545/145-16

text

Nor145 with opt 1,12 and 16, Nor1216 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545 .

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Nor1545/145-17

text

Nor145 with opt 1,12 and 16, Nor1217 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545 .

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Nor1545/B145-16

text

Nor145 with opt 1,12 and 16, Nor1216 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545/B .

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Battery not included.

Support for Noise Compass Nor1297 and weather station Thies Clima US.

Nor1545/B145-17

text

Nor145 with opt 1,12 and 16, Nor1217 outdoor microphone with Nor1227 microphone cartridge, and 5m mic. cable, weatherproof cabinet Nor1545/B.

Includes filter, triggers and audio only available via NorCloud (no SLM use!).

Can be mounted directly to a wall.

Battery not included.

Support for Noise Compass Nor1297 and weather station Thies Clima US.

Nedladdningar

text

Product range catalogue - English -
Norsonic_productrange_2024-2025.pdf (0.01GB)

Released

Nedladdningar
Catálogo de productos - Español -
Norsonic_product_catalogue_Spanish.pdf (0.01GB)

Released

Nedladdningar

Nor1545 Noise Monitoring Terminal -
TN-Noise-Monitoring-Terminal-Nor1545-April-2024.pdf (1359.51KB)

Released

Nedladdningar
Connecting Nor1545 cabinet and Nor145 with IP camera to exisiting LAN -
TN-Connecting-Nor1545-cabinet_Nor145-with-IP-camera-to-exisiting-LAN-April-2024.pdf (740.88KB)

Released

Nedladdningar

DoC Nor1545 Noise Monitoring Terminal -
DoC_Nor1545.pdf (35.65KB)

Released

Declaration of Conformity Nor1545 Noise Monitoring Terminal
