VA-14 Vibrationsanalysator
Upptäck VA-14, en toppmodern handhållen vibrationsmätare som tar precision och tillförlitlighet till en ny nivå. Genom att använda VA-14 för tillståndsövervakning kan du identifiera problem i maskiner och system i ett tidigt skede, vilket hjälper dig att undvika kostsamma driftstopp och reparationer. Det innebär inte bara besparingar, utan också en förlängd livslängd på din utrustning.
Pris från 56540sek ex. moms.
Om

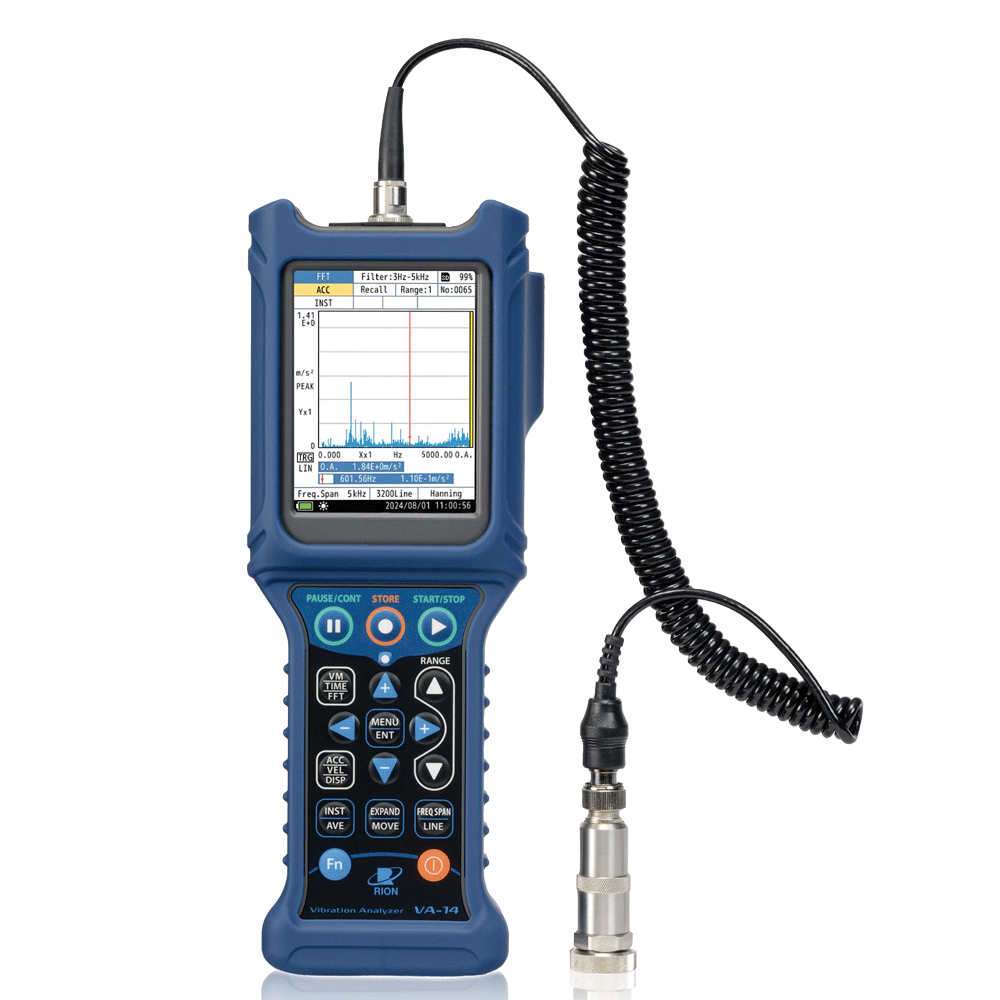

The VA-14 is a Vibration Analyzer with FFT analysis function that comprehensively includes the functions required for equipment diagnosis and on-site measurement. It is approx. 200 g lighter than the previous model VA-12 and becomes thin in shape, making it easier to hold with one hand.

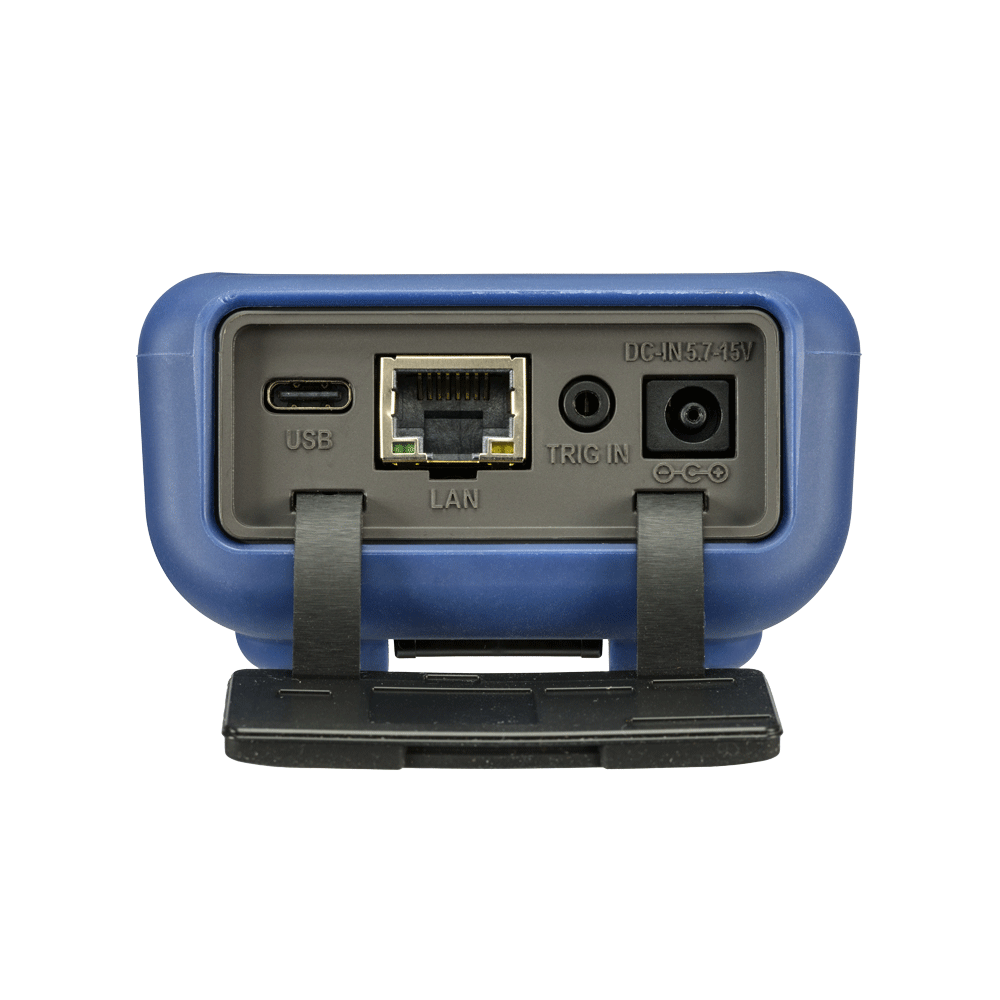

The new LAN terminal strengthens the connection with communication devices, allowing command control of the instrument and file transfer remotely. In addition, by installing the optional program VX-14S, it is possible to connect a microphone and measure sound. As a result, the VA-14 covers can cover not only vibration measurement but also sound frequency analysis and evaluation. It can be used in a variety of measurement situations, including measuring vibrations emitted by rotating objects such as machinery and motors, equipment diagnosis using vibration, and product research and development.
Egenskaper
- Advanced 1-channel FFT analysis with simultaneous multi-parameter measurement
- Remote operation capability through USB-C and LAN connectivity

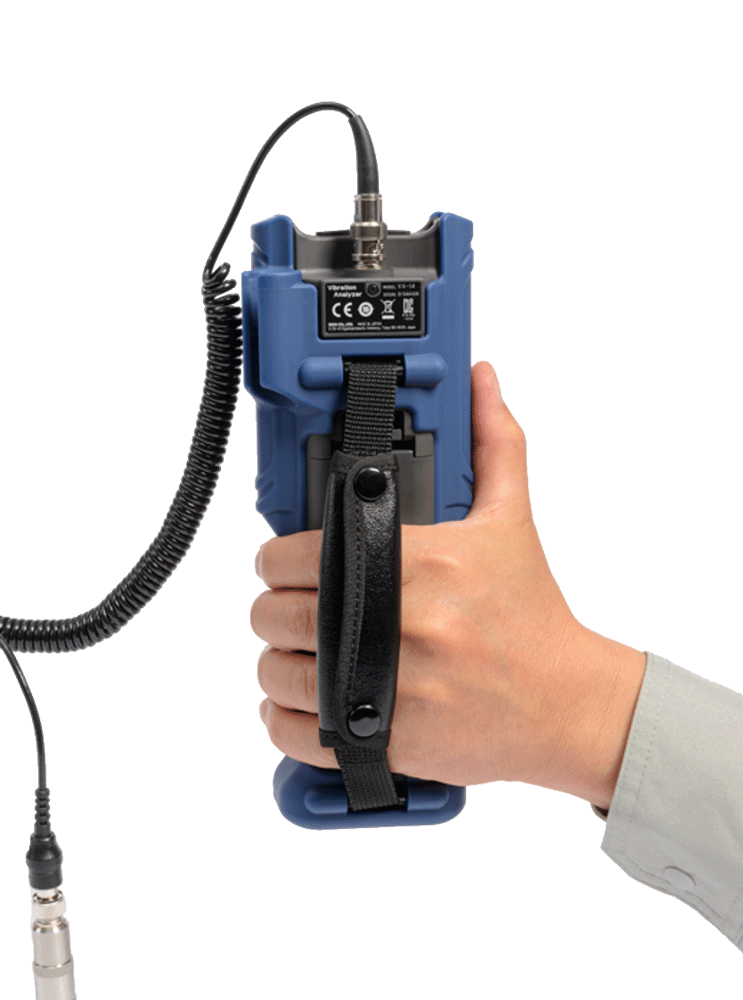

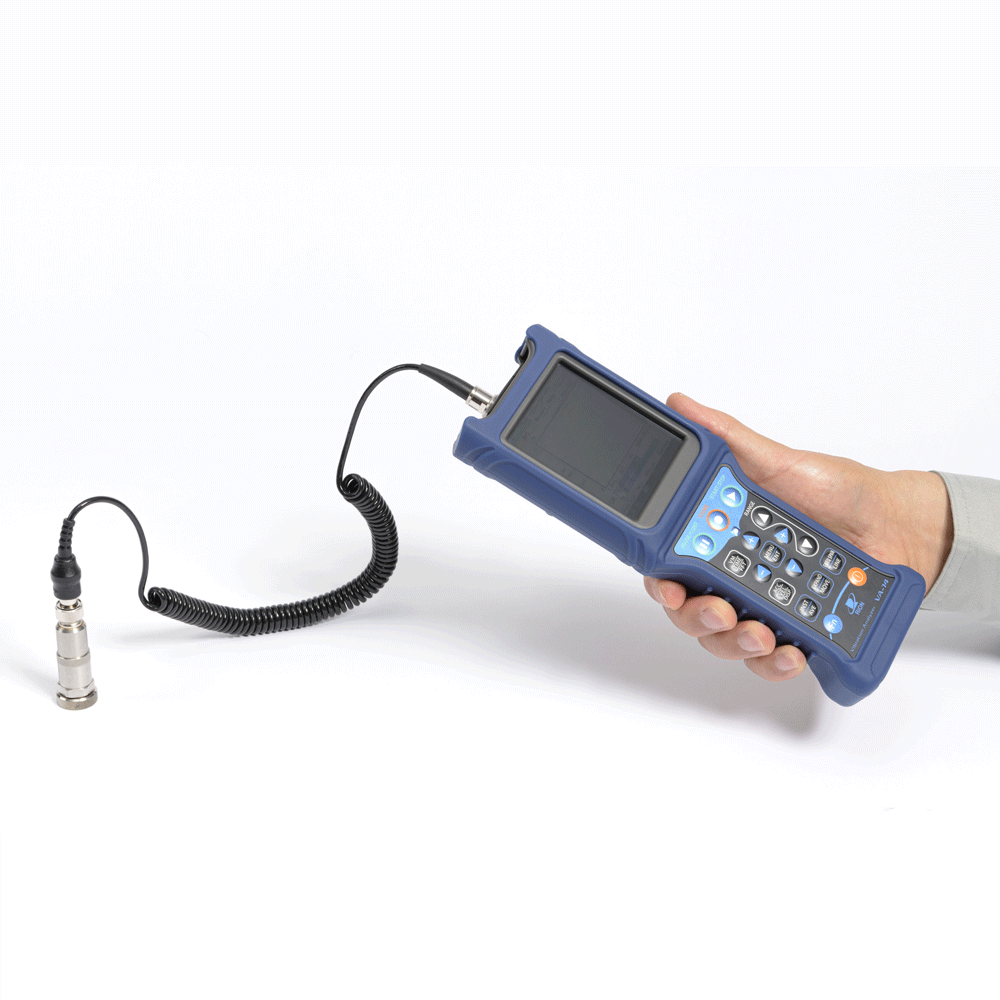

- Ergonomic single-handed operation with reduced weight.
- Comprehensive measurement options including acceleration, velocity, displacement, and crest factor.
- Intelligent spectrum analysis with TOP10 and PEAK10 features.
- Flexible power options via USB-C .
- Enhanced filter customization for precise measurements.
- Full support for imperial units (G, inch/s, mils).
Användningsområden
Vibrationsmätning – Perfekt för produktutveckling, kvalitetssäkring och frekvensanalys.
Utrustningsdiagnostik – Identifiera fel och oegentligheter innan de orsakar större problem.
Tillståndsövervakning – Få en kontinuerlig bedömning av maskiners hälsa.
PC-anslutning – Använd VA-14 som en front-end-enhet med dedikerad programvara.

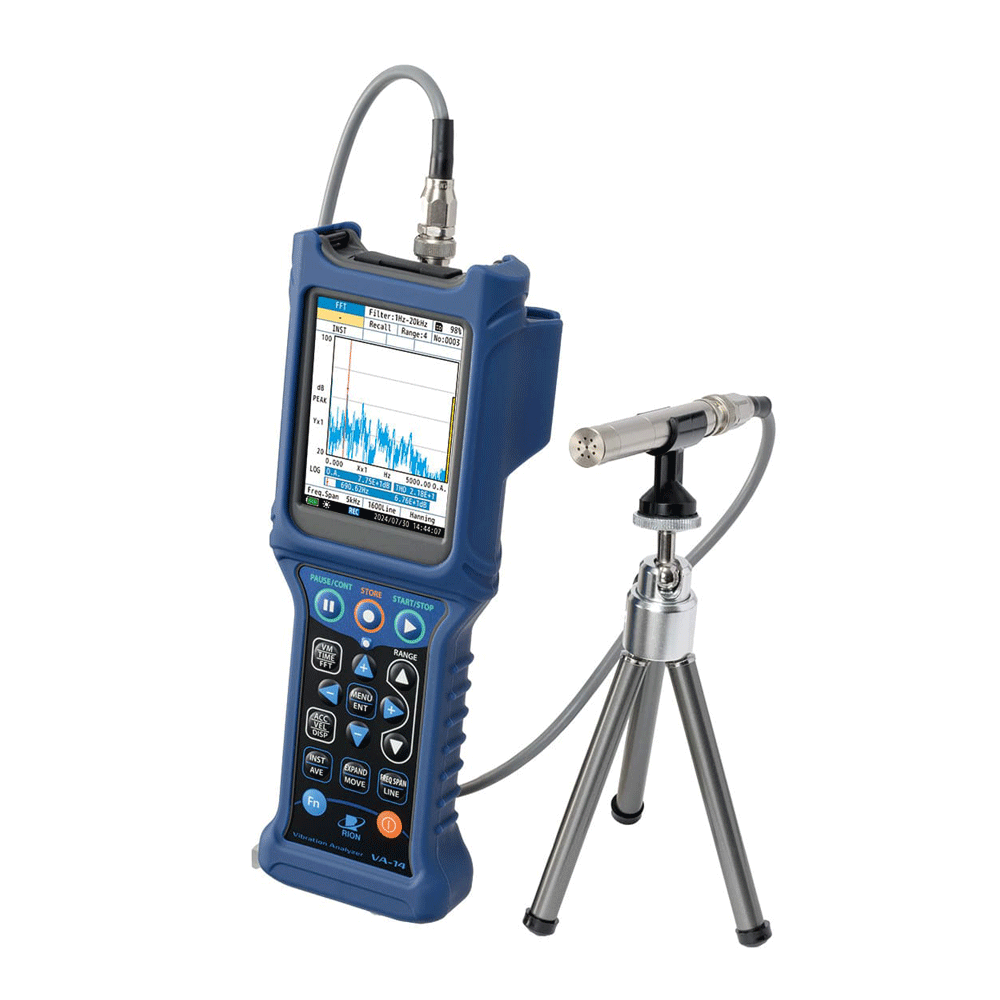

Ljudmätning – Koppla in en mikrofon för att mäta ljudnivåer med hög precision.
Optioner
Superior function program VX-14S
The VX-14S is a collection of customer requests that have been realized one by one for what they wish the VA-12 could do.
- Accurate machine condition evaluation using Peak calculation function
- Sound measurement with microphone preamplifier connection function
- Enhancement of connection with communication devices via LAN/USB
- Long-term vibration recording with auto store and long-term waveform recording functions
Diagnosis program VX-14D
VX-14D is a program specialized for equipment diagnosis. It is possible to provide not only measurement data for equipment diagnosis but also evaluation results.
- Vibration severity evaluation function based on ISO 10816 (4-level evaluation)
- Threshold evaluation function
- Fault diagnosis function
Nedladdningar
Product data
Rion VA-14
-
-
-
Device comparison chart – VA-14 and VA-12
