Microflown In-situ absorption
A truly in-situ method to measure the properties of your materials
Acoustic noise pollution can be reduced by absorbing sound energy. Absorbing material packages are used in many applications to attenuate sound. Knowing exactly the acoustic properties of your materials and the effectiveness of the applied acoustic treatment is a requirement to successfully reduce noise levels. The In-situ absorption setup is a solution to achieve just that.
About
POINT, MEASURE, AND DIRECTLY OBTAIN SOUND ABSORPTION IN MINUTES

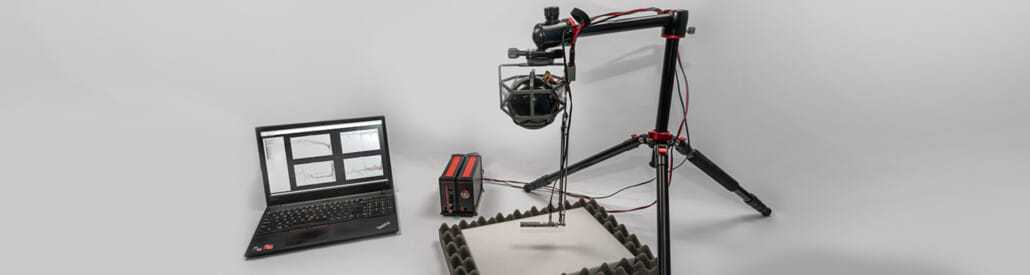

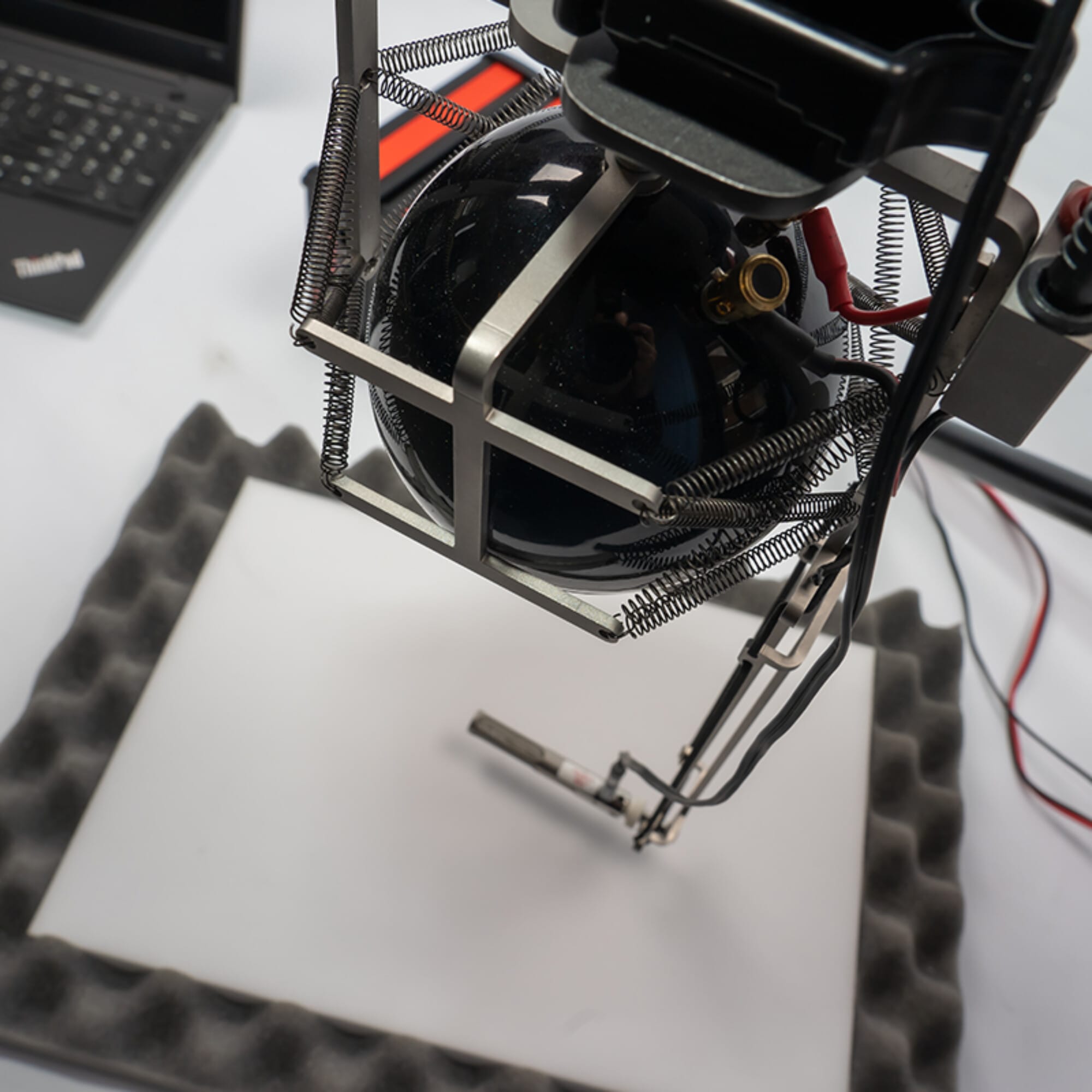

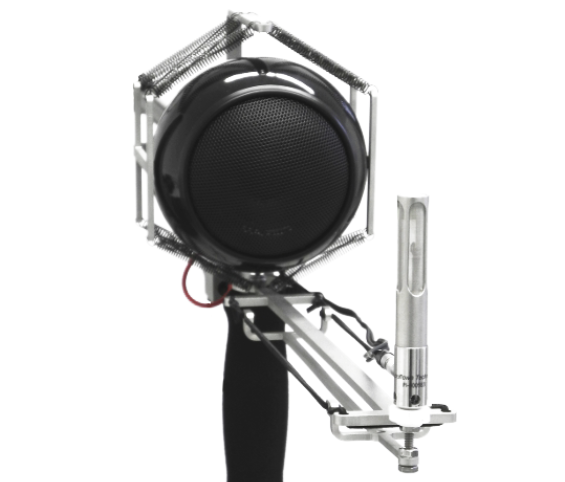

With a small, handheld impedance gun the sound absorption, reflection, and acoustic impedance can be measured in just a few minutes, broadband. With a sound source at 23cm from the probe, noise is generated toward the sample. The impedance gun is equipped with a system designed to decouple the sensors from structure-born vibration generated by the spherical loudspeaker. The sound pressure and acoustic particle velocity are measured directly on the surface of the material. The sound absorption & reflection coefficients can be obtained directly from the measured acoustic impedance as the complex ratio of sound pressure to particle velocity.
Microflown In-situ absorption
Non-destructive testing and truly in-situ

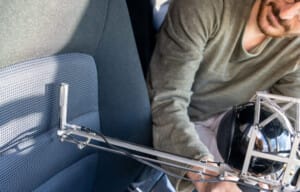

With our innovative in-situ absorption setup, the days of destructive testing are now behind us. This powerful system allows for the measurement of sound absorption in any environment, offering unprecedented versatility. Beyond testing simple material samples, the system is equipped to handle inhomogeneous materials, curved surfaces, and fully assembled parts.
Microflown In-situ absorption
More information click here
Features
- Frequency range 300Hz - 10kHz
- In-situ method - Measurement of: -Acoustic Impedance -Sound reflection -Sound absorption
- Non-destructive testing method
- Flat & curved surfaces
- Homogeneous & inhomogeneous materials
