Hem / Produkter / Microflown Acoustic Shape
Varemerker: Microflown Technologies | Category: Testsystem

Microflown Acoustic Shape

Be om info/pris

TRANSIENT NOISES AND NON-STATIONARY MEASUREMENTS
Acoustic Shape enables to combine multiple measurements that share a common reference signal into one single project. As a result, users can localize complex sound sources with precision and also quantify noise effectively, even under time-varying operational conditions. This module has recently joined the Velo platform, expanding the usage of near-field acoustic data from 2D to 3D. As with Scan&Paint 3D, all test data is visualized around a 3D model of the device under test.

Related products

  • Nor1525 Kalibreringssystem

    Testsystem

    Nor1525 Kalibreringssystem

    Add to cart Add to cart Read more Detaljinfo Detaljinfo Detaljinfo
  • Rion DA-21 4-kanals Datarecorder

    Testsystem

    DA-21 4-kanals Datarecorder

    Add to cart Add to cart Read more Detaljinfo Detaljinfo Detaljinfo
  • Nor1517A

    Testsystem

    Nor1517A Testsystem

    Add to cart Add to cart Read more Detaljinfo Detaljinfo Detaljinfo
  • Nor850

    Testsystem

    Nor850 Multikanalsystem

    Add to cart Add to cart Read more Detaljinfo Detaljinfo Detaljinfo

About

text
https://norsonic.nyg.dev/wp-content/uploads/2024/11/Acoustic_Shape_animation_Intro.mp4

Integrating Multiple Measurements for Enhanced 3D Sound Analysis
Acoustic Shape allows you to automatically synchronize and track the position of a 3D probe array, facilitating fast and efficient point-by-point measurements. This acoustic testing solution is especially useful for exploring non-stationary problems, visualizing transient noises or varying sound fields by using a reference signal to synchronize multiple captures. The software delivers real-time process control and noise visualization tools, along with a wide range of analysis options. This empowers users to better understand and interpret how the spatial distribution of sound emission fluctuates under varying operational conditions.

Microflown Acoustic Shape

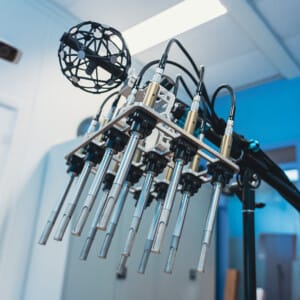

CUSTOMIZABLE ACOUSTIC VECTOR SENSOR ARRAYS
Acoustic Shape is a flexible solution due to its versatile array configurations. It accommodates from single probe setup to more advanced arrangements including 5 or even 12 acoustic vector sensor probes, meeting a wide range of customer requirements.
Having a higher number of probes reduces the total measurement time required to perform a full source characterization. Furthermore, the large array configuration also support variable distance adjustments for each of the 12 probes, allowing to get closer to the target surface at certain locations within the grid. On the other hand, using less sensors lowers the complexity of the full testing system, while maximizing the flexibility of the solution, fully compatible with Scan&Paint 3D software.



https://norsonic.nyg.dev/wp-content/uploads/2024/11/CompressorMeasurement.mp4

Video Export
Enhance your understanding of non-stationary sound visualization with our Acoustic Shape solution, where the dimension of time plays a crucial role in comprehending the behavior of sound. Recognizing this, our platform is designed with a powerful video export functionality, allowing for the dynamic representation of sound over time. This feature enables a more nuanced analysis and presentation of auditory data, making it easier to illustrate changes and patterns in sound behavior effectively.

More information click here

Features

text
    • 3D visualization of: -Sound intensity vectors -Particle velocity vectors -Sound pressure distribution -Color-wrapping planes
    • Broadband Solution | 20Hz - 10kHz
    • Multi-capture synchronization using reference signals
    • Automatic 3D tracking of the array position
    • Frequency-independent spatial resolution
    • Order Tracking and order analysis tools
    • Flexible configuration of a measurement grid

Nedladdningar

text
Product data

Microflown Acoustic Shape

  • Microflown Acoustic Shape -

    AcousticShape_product_leaflet.pdf (1969.45KB)
    Released
